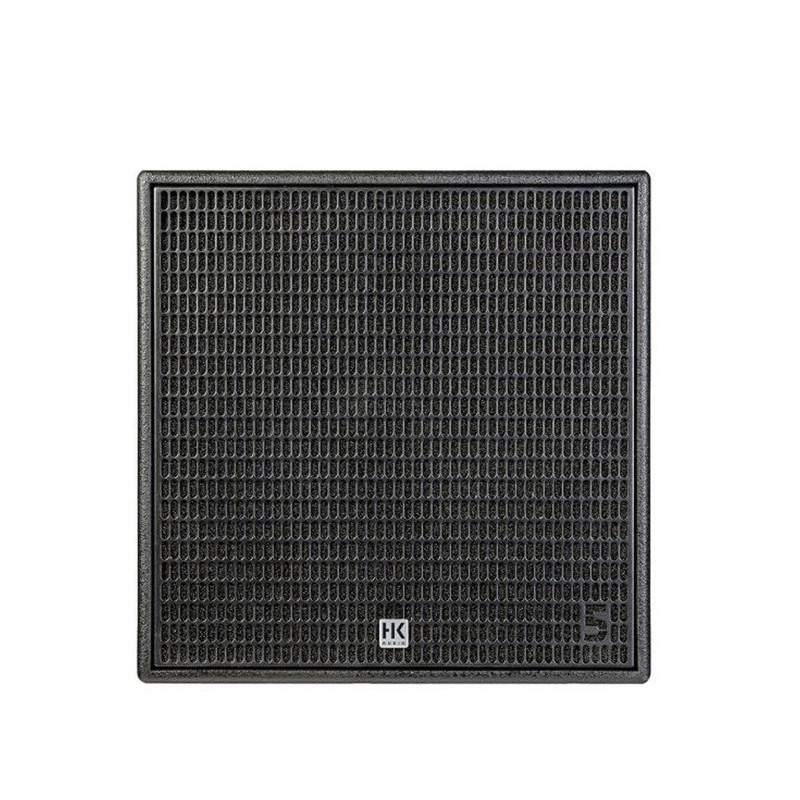

HK Audio LINEAR 5 MKII 118 Sub A 18” Active PA Subwoofer

The standard bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. Cardioid settings that can be simply selected via a preset give the user an enormously expanded range of options for system configuration and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.

Technical Specifications

• Max. SPL @ 10 % THD 130 dB half space (42 Hz – 100 Hz averaged)
• Max. SPL Peak @ 10 % THD 131 dB half space
• Frequency response +/-3 dB 42 Hz – X-over
• Frequency response -10 dB 38 Hz – X-over
• Power amp output (RMS/Peak) 1,000 / 2,000 W
• Amplifier type Class D
• Woofer 1 x 18", 4" voice coil
• Maximum input level 20 dBu
• Analogue inputs 2 x XLR combo balanced
• Analogue Thru 2 x XLR balanced
• DSP Out 1 x XLR balanced
• Network port EtherCON RJ45, 1 x In, 1 x Thru
• Filter presets Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote
• Remote software DSP CONTROL (Windows, Mac OS)
• DSP functions Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Sample rate 48 kHz
• System latency Less than 2 ms
• Mains connection 1x IEC connector with V-Lock securing system, 100-240 V
• Power consumption 1.9 A / 100–240 V nominal according to EN 62368-1
• Pole mount 1 x M20
• Carrying handles 2 x MultiGrip
• Housing Birch multiplex
• Surface Black acrylic enamel
• Front grille 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD) 55 x 56 x 68.5 cm 21-21/32 x 22-3/64 x 26-31/32"
• Weight 41.6 kg / 91.71 lbs
