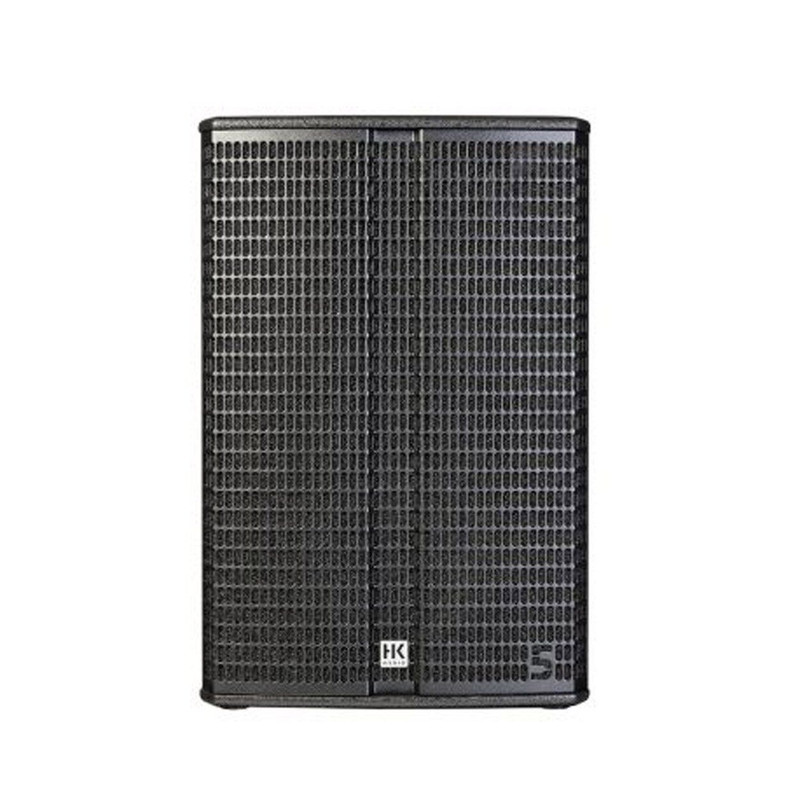

The LINEAR 5 MK II XA models are compact, flexible, multifunctional mid/high units with impressive range and crystal clear, assertive sound. Due to the multifunctional enclosure shape with slanted monitor edge, they can be operated as low-feedback stage monitors or as powerful mid/high system units in conjunction with the subwoofers. The rotatable horns ensure optimal dispersion even when used on their side – although rotating the horn is not strictly necessary with the 110 XA and 112 XA due to the narrow dispersion angles. Even on small and narrow stages, precise sound coverage is possible without any problems.
DSP – Powerful and smart The integrated high-performance DSPs allow tuning of the system with high precision. They provide increased usable sound pressure before distortion sets in and reduce the risk of feedback significantly.
Not only can the four matching presets be accessed directly at the loudspeaker cabinet, but also via Ethernet connection and the DSP CONTROL software for larger system set-ups on a Mac or PC and ad-hoc adjustements.
The DSP Out also allows integration of a non-networked loudspeaker, processing its signal independently of the DSP settings within the loudspeaker using the DSP CONTROL software.
Cardioid – Problem solver for professionals in any situation Professional sound technicians respond to stringent sound insulation requirements, uncontrolled bass dispersion on and behind the stage and a high feedback risk in the lower frequency range with Cardioid technology for the subwoofers. This technical trick is now easily achieved without measurement technology: simply set up, select a preset, and you’re done!
The Cardioid setup attenuates the bass sound pressure of the physically spherically radiating subwoofers behind the subwoofers by up to 34 dB. There is a slight increase in sound pressure of approx. 2 dB in the front sound dispersion. This results in a directional, cardioid radiation pattern.
Cardioid sound reinforcement technology can be used with vertically stacked subwoofers and also with horizontal setups. This is an enormous advantage on low stages. The 1:1 vertical and 1:1 horizontal cardioid presets are unique features.
Technical Specifications
- Max. SPL @ 10 % THD 128 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL Peak @ 10 % THD 136 dB half space
- Frequency response +/-3 dB 73 Hz – 12 kHz
- Frequency response -10 dB 67 Hz – 19 kHz
- Power amp output (RMS/Peak) 600 / 1,200 W
- Amplifier type Class D – bi-amped
- Low/mid speaker 1 x 12", 2.5" voice coil
- HF driver 1", 1.7" voice coil
- Horn characteristics 80° x 60° CD horn, rotatable
- Active x-over frequency 1.9 kHz FIR X-over with 72 dB/oct.
- Maximum input level 20 dBu
- Analogue inputs 1 x XLR combo balanced
- Analogue Thru 1 x XLR balanced
- DSP Out 1 x XLR balanced
- Network port EtherCON RJ45, 1 x In
- Filter presets Flat, Monitor, Low Cut, Remote
- Remote software DSP CONTROL (Windows, Mac OS)
- DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate 48 kHz
- System latency Less than 2 ms
- Mains connection 1x IEC connector with V-Lock securing system, 100-240 V
- Power consumption 1 A / 100–240 V nominal according to EN 62368-1
- Setup angle 31°
- Pole mount DuoTilt 3°/7°
- Rigging points 3x M8 (AP-8)
- Carrying handles 2 x SingleGrip
- Housing Hybrid (birch multiplex/MDF)
- Surface Black acrylic enamel
- Front grille 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD) 36 x 59 x 30.5 cm 14-1/16 x 23-15/64 x 12-1/32"
- Weight 17.6 kg / 38.80 lbs
