5" Active Studio Monitor

£180.00 Inc VAT
Save: £6.00 | RRP £186.00
Checking Availability..
Add Items to Basket
Spend £300 and you could pay...
per month
x payments +
£ deposit
Apply for credit at checkout (minimum order value £300)

  • Extended Christmas Returns Until 31st Jan 2016 - more information

    Our extended Christmas returns policy is valid from the 15th November 2016. This means that you can now return online purchases up until 31st January 2017. Normal exclusions apply. View our returns policy for more details.

  • 3 years warranty
  • Delivery is FREE on this item! (Mainland UK)
  • Seen this Cheaper? Contact us for a price match
  • Be the first to review this product

Quick Overview

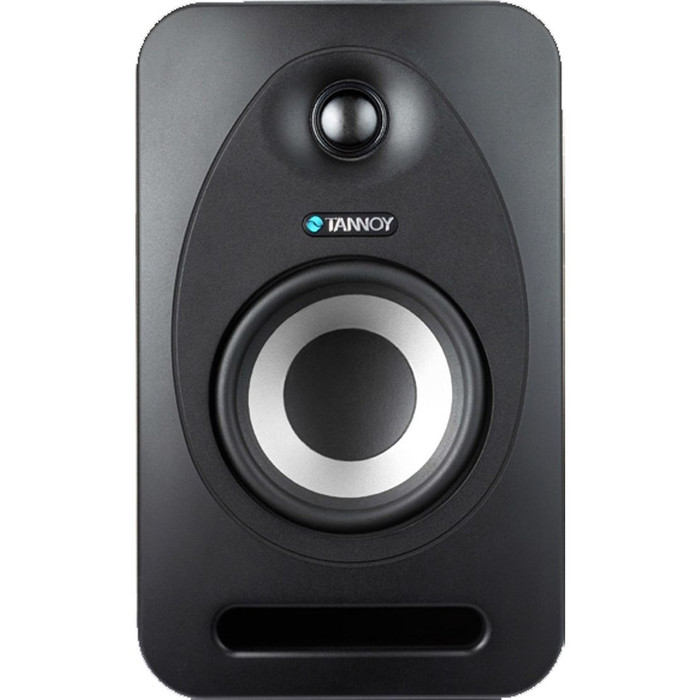

Tannoy Reveal 502 (Single) is a 5" Active Studio Monitor that features 75 Watt Bi-Amp module and active crossover filter that ensures maximum power and tonal clarity

  • Description
  • Additional Information
  • Alternative Products

Tannoy Reveal 502 (Single) Packages

Tannoy Reveal 502 (Single) Product Description

Massive amounts of power, exectued through custom-designed, extremely-efficient woofers, provide you with incredibly impressive and precise bass performance. The expertly tweaked crossover-filter-alignment ensures optimal timing between the custom designed drivers, which produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to join you during mixing sessions.

Each monitor comes with a 5 meter 1/8”(3.5mm) jack cable, which when combined with the AUX Link feature, allows you to plug into your monitors quickly and easily. Whether you’re mixing on the go or for the times when you just want to listen to some of your favourite music from your mobile device, it’s simple to connect.


  • Plug in your phone /tablet for instant listening gratification
  • 75 Watt Bi-Amp module and active crossover filter ensures maximum power and tonal clarity
  • Balanced and Unbalanced inputs for maximum flexibility
  • Adjust volume and EQ to match your listening environment
  • Rubber padded base for acoustical isolation
  • 5” custom high-efficiency LF driver
  • 1” soft-dome “Poke-Resistant” tweeter
  • Accurately tuned front-firing bass port -allows near-wall placement and ensures optimal LF performance

Technical Specifications

  • Frequency Response: 49 Hz - 43 kHz
  • Max SPL: 108 dB
  • HxWxD Cabinet Dimensions
  • 11.81 x 7.24 x 9.37”
  • 300 x 184 x 238 mm
Membrane Sizes
  • Drive Unit Size, LF/Mid Range: 5” (130 mm)
  • Drive Unit Size, HF: 1” (25 mm) Soft Dome
  • Bi-amp Output Power, RMS
  • LF/Mid Range: 25 Watts
  • HF: 25 Watts
  • THD: < 0.7="" />
Input Types and Impedances
  • Balanced: XLR, 20 kOhm
  • Unbalanced: 1/4” Jack, 10 kOhm
  • AUX Link: 1/8” Jack, 10 kOhm
  • Output
  • AUX Link:1/8” Jack
EQ Options
  • Neutral HF Setting
  • +/-1.5 dB HF Boost/CUT
  • Crossover Frequency: 2.3 kHz
Switchable Power Supply Compatibility:
  • 100-120 V or 200-240 V (50 - 60 Hz)
  • Max Power Consumption: 120 Watts
  • Low Frequency Alignment: Optimized Front Port
Fuse Data
  • 100 - 120 V: T800 mAL / 250 V
  • 200 - 240 V: T800 mAL / 250 V

Tannoy Reveal 502 (Single) Additional Information

SKU 980017690
Brand Tannoy
Condition New
Colour Black
Sold As Single
Speaker Type Active
Speaker Configuration 2-Way
LF Driver Size 5"
LF Amplifier 50W
HF Driver Size 1.25"
HF Amplifier 25W
HF Driver Material Dome
Total Power 75W
Min Frequency Response (Hz) 49 Hz
Max Frequency Response (kHz) 43 kHz
Max SPL 108 dB
Crossover Frequency 2.3 kHz
Port Configuration Front Ported
Monitor Features Rear Panel Volume Control
Level Control Bass, Mid, Treble
Input Connectivity XLR, 1/4" Jack
Output Connectivity RCA / Phono
EAN 5035866176908
