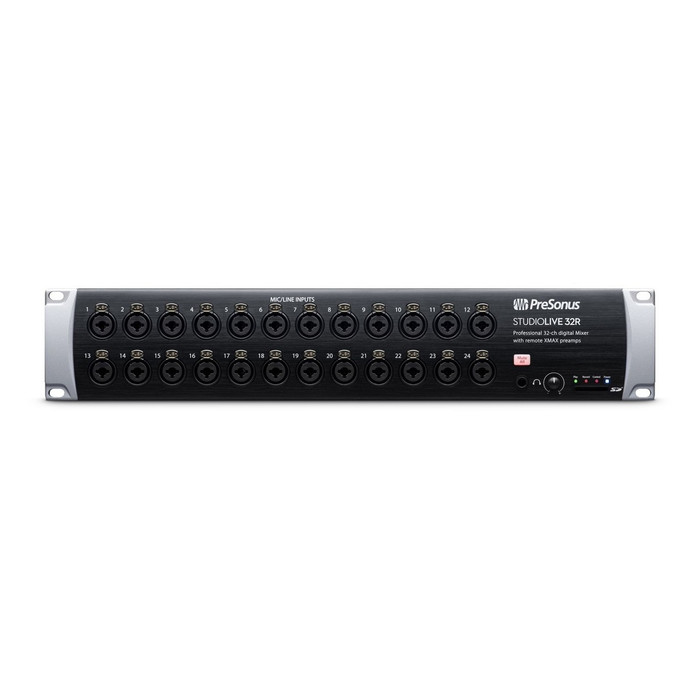

Powerful Stage Box and Rack Mixer
The StudioLive 32R is a versatile AVB stage box for the StudioLive Series III consoles and can operate as a simple stage box or as a combination stage box/monitor mixer. Its extensive feature allow you to customise its workflow and operations to suit the way you work providing efficiency for your mixing and recording. The StudioLive 32R is ideal for any home studio and live sound application. The rack mixer allows you to recall settings as well as recalling analog XMAX preamps. A convenient feature of the XMAX preamps are that they can be remote-controlled with UC software or with Studio One Artist DAW, and when you load a mixer scene, the preamp trim values are recalled along with the other settings.
Integrated Software Package with Professional DAW
The PreSonus StudioLive 32R features a tightly integrated software library that includes UC Surface touch-control for Mac, Windows, iPad and Android allowing you to mix wirelessly or over a wired network from anywhere, which is ideal for moving around a room to find problem frequencies and correcting them at that spot ensuring a more precise and clean mix. Also included is PreSonus' Studio One Artist DAW allowing you to remote control the mixer's recallable XMAX preamps and Fat Channel processing. In addition there is the capture recording app which allows you to completely automate virtual soundchecks and record shows. Finally there is the QMix-UC software which enables personal monitor mix control for your musicians for iPhone, iPod touch and Android.
Network-ready With a Choice of Recording Mixers
The StudioLive 32R comes with an AVB Ethernet connection allowing it to network with StudioLive Series III mixers and compatible computers. As the 32R comes with a built-in SD card recorder, built-in AVB networking and USB port there are 3 ways to record with the 32R. You can either stereo record straight to the SD card eliminating the need for a computer, or you can record to a computer using the built-in AVB networking or through the USB 2.0.
Series III Fat Channel Processing
The Series III Fat Channel implements a plug-in-style workflow featuring vintage style EQ and compression options on each channel including passive EQ and classic tube limiters. Additionally all mix outputs feature 6-band, fully parametric EQ for precise sound shaping and correcting problem frequencies. This studio-style processing can be used either in recording, monitor mixing and front-of-house applications.
Highlights
- Perfect partner for StudioLive Series III consoles (serve as simple stage box or, combination stage box and monitor mixer
- 34 total analog inputs
- 32 mic/line channel inputs plus 2 RCA inputs
- 16 TRS FlexMix outputs
- 2 XLR (left/right) main outputs
- Stereo headphone output
- 32 channel inputs
- 1 stereo digital return (SD card, AVB, or USB)
- 24 Filter DCAs
- Onboard stereo SD recorder
- 1 ethernet control network port
- 1 ethercon AVB audio network port
- Complete settings recall, including recallable analog XMAX preamps
- Series III Fat Channel processing on every channel
- 6-band, fully parametric EQ on all mix outputs
- Control with multiple ipads, and optionally, a computer, each running UC Surface with a different view enabling you to see and touch all controls you need at a given time
- Fat Channel presets now like scenes for individual channels, saving input and Fat Channel setting and AUX send and bus assignment
- 3 ways to record (stereo recording to built-in SD recorder, via built-in AVB networking, via USB 2.0)
- Can connect to a wireless router or directly to a computer for wireless or wied control of all mixer features using SC Surface
- Tightly integrated software library (UC Surface touch-control, Studio One Artist DAW, Capture recording app with virtual soundcheck, QMix-UC personal monitor mix control)
Technical Specifications
- USB 2.0 port
- Internet connection
- Internal or external 7200 RPM storage drive highly recommended
- 34GB hard disk space
- Monitor with 1366x768 resolution
System Requirements
PC
- Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/86, Windows 10 x65/x86
- Intel Core 2 Duo (Intel Core i3 or faster recommended
- 4GB RAM (8GB or more recommended)
Mac
- Mac OS X 10.8.5 64-bit or later
- Intel Core 2 Duo processor (Intel Core i3 or faster recommended)
- 4GB RAM (8GB or more recommeded)
iOS
- ios 9.3 or later
- iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2
Android
- Android 5.0 (Lollipop) or later
- Android smartphone (QMix-UC)
- Android tablet (8-inch) with 1024x768 resolution (UC Surface)
