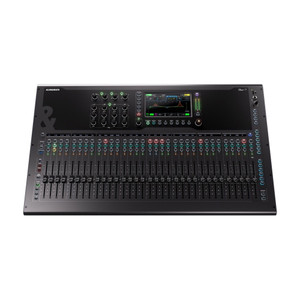

Expanded Inputs for Complex Setups The Allen & Heath Qu-7 is built to handle demanding live and studio environments, offering 32 mono mic/line inputs and two stereo pairs. Each input is equipped with digital processing including 4-band EQ, compression, gate, and delay—ideal for everything from solo performers to full ensembles. A talkback input and headphone monitoring support live sound workflows with precision and control.
33 Motorised Faders with Custom Layers Get instant control with 33 motorised faders and four fully assignable layers. Scene recall and DCA control let you switch between setups effortlessly, while eight SoftKeys offer instant access to key functions like FX, mute groups, or tap tempo—ideal for fast-paced live scenarios.
Intuitive Touchscreen Interface A 7” capacitive touchscreen delivers real-time, gesture-based control over routing, metering, FX, and mix settings. Designed for speed and clarity, the interface simplifies navigation without diving through deep menus—making operation quick and accessible for all experience levels.
Built-in FX and Powerful Routing Six built-in FX engines come with dedicated return channels, providing high-quality reverbs, delays, and modulators without sacrificing inputs. With 12 mix outputs and four matrix channels, you can handle foldback, groups, zone feeds or recording mixes with ease.
Multitrack Recording and Remote Control The Qu-7 supports up to 32×32 multitrack recording via USB-C, SD card, or USB-A—no DAW required. The 128×128 SLink port provides flexible expansion with stageboxes and remote I/O. Allen & Heath’s MixPad and 4You apps enable wireless control from any device, making the Qu-7 a perfect fit for touring, installs, or hybrid workflows.
Highlights
- 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port
- 32 mono + 2 stereo input channels
- 12 mix outputs (6 mono, 6 stereo) + 4 matrix outputs
- 6 FX engines with dedicated returns
- 33 motorised 100mm faders with 4 custom layers
- 7" capacitive touchscreen with intuitive UI
- USB-C, SD card, and USB-A multitrack recording (up to 32×32)
- 128×128 SLink port for remote I/O
- 8 SoftKeys for quick function access
- Built-in 32ch AMM, Gain Assistant & Feedback Assistant
- Remote control via iOS, Android, macOS & Windows apps
Technical Specifications
- Inputs: 32 XLR/jack combi, 2 stereo TRS pairs, 1 talkback XLR
- Outputs: 20 XLR, 2 TRS, 1 AES3 digital, headphone out
- Mix Buses: 12 total (6 mono, 6 stereo aux/groups)
- Matrix Outputs: 4 mono (linkable)
- Main Output: Stereo LR
- USB-C Interface: 32×32 multitrack
- SD Card: 16×16 @96kHz or 32×32 @48kHz
- USB-A: Stereo record/playback and data transfer
- Faders: 33 motorised
- Display: 7” capacitive touchscreen
- SoftKeys: 8 assignable
- I/O Expansion: 128×128 SLink port
- Lamp & Footswitch Ports: 12V lamp, configurable dual footswitch
- Dimensions (W×D×H): 800 × 476 × 213.1 mm
- Weight: 16.7 kg
